E-Z Treat Products Available from Snowden Onsite (SOS).

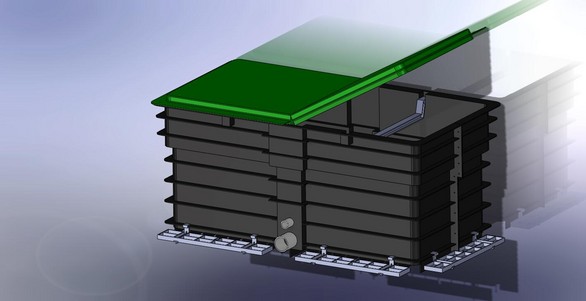

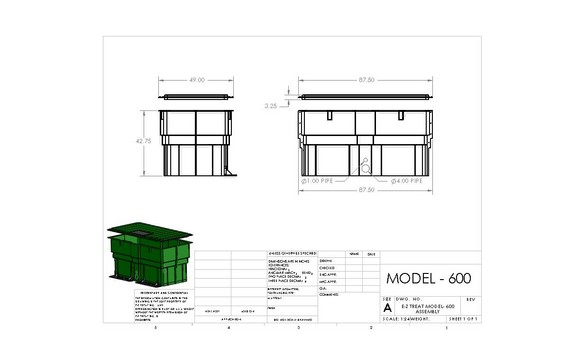

E-Z Treat Model #600

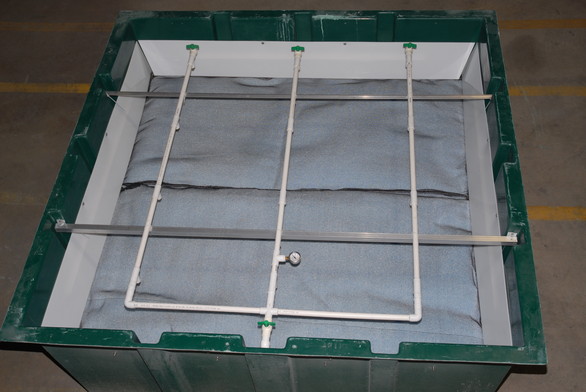

E-Z Treat Model #1200



E-Z UV Disinfection

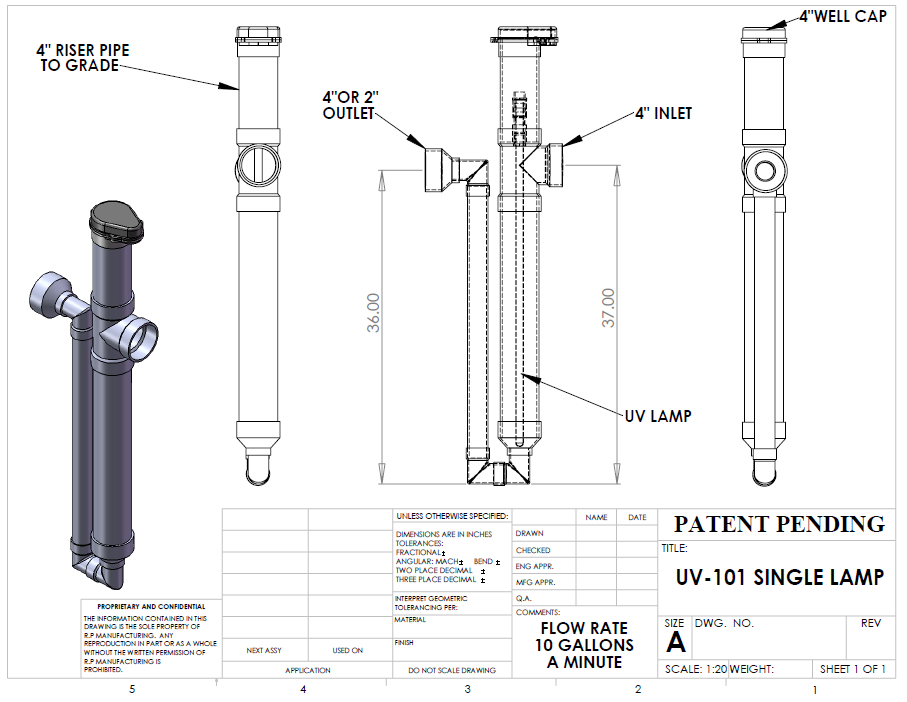

The E-Z UV Model 101 is our most economical model



  • The model 101 provides the most economical UV Disinfection
  • Flow Rates to 10 GPM
  • Gravity Flow
  • Easy to Maintain
  • Easy to Install


E-Z UV Disinfection

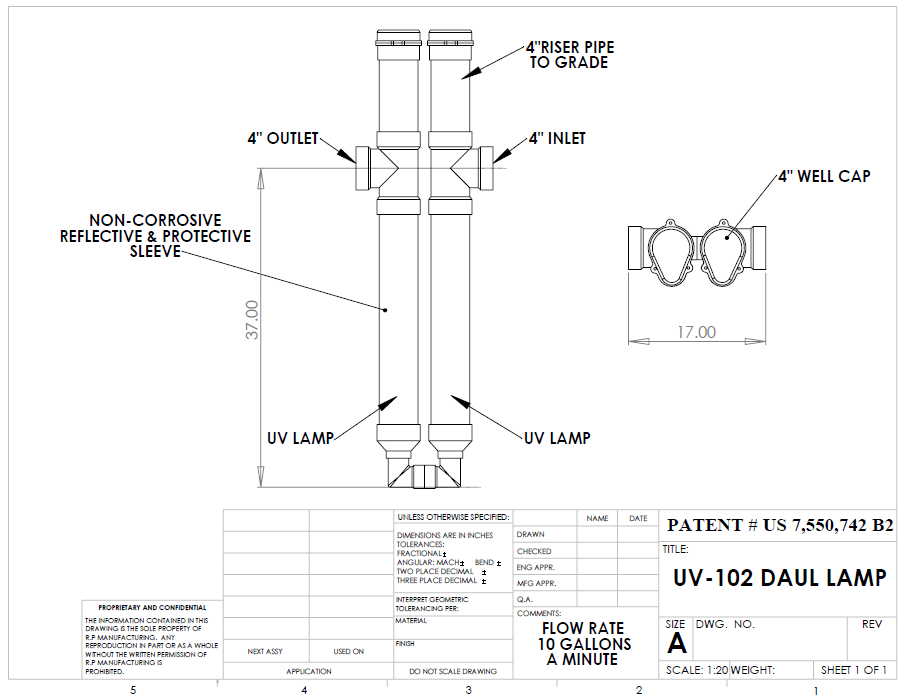

The E-Z UV 102 Model Provides UV Lamp Back Up Protection



  • With the model 102, One Lamp Disinfects, When It Burns Out The Unit Automatically Switches To The Back Up Lamp and Sending an Alarm Allowing Time for Lamp Replacement Without Uninterrupted Disinfection
  • Gravity Flow
  • Easy to Maintain
  • Easy to Install


E-Z UV Disinfection

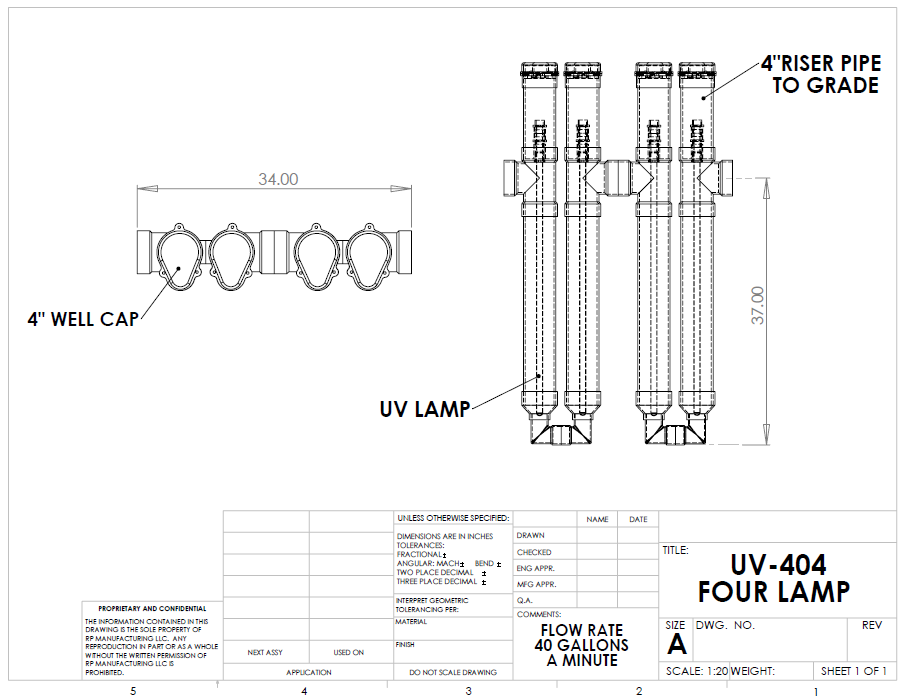

The E-Z UV 404 Model Provides Highest Capacity and Customized Configuration



  • With the model 404, In its Basic Configuration, All Four Lamps Disinfect. When One Burns Out The Unit Automatically Sends an Alarm Requiring Lamp Replacement. Depending on the Application, its Configuration can be Modified to use Two Lamps to Disinfect and Two Lamps as Backups.  Check with E-Z Treat for Other Possible Configurations.
  • Gravity Flow
  • Easy to Maintain
  • Easy to Install

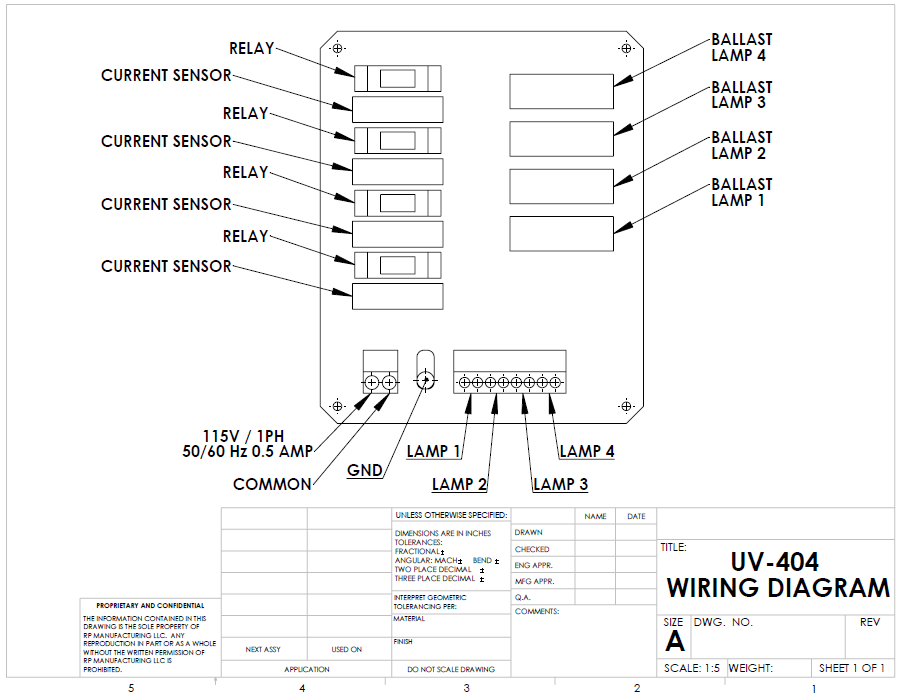

Model 404 Wireing Diagram
